SPM-D2 Series

The SPM-D2-10 series are microprocessor-based synchronizers designed for use on two or three phase AC generators equippe...

Product Overview

The SPM-D2-10 series are microprocessor-based synchronizers designed for use on two or three phase AC generators equipped with Woodward or other compatible speed controls and automatic voltage regulators.

Key Features

✓Synchronization for one or two circuit breakers
✓Phase match or slip frequency synchronization with voltage matching
✓Three position/analog outputs for speed and voltage bias signals
✓Circuit breaker time compensation
✓Discrete inputs for operating mode selection
✓Two-line liquid crystal text display for operation, alarm indication, and visualization of measuring values
✓LED synchroscope
✓Wide range power supply option available
✓PC and front panel configurable
✓Compatible with a wide range of governors, automatic voltage regulators, and circuit breakers
✓True RMS voltage sensing for reduced susceptibility to harmonics

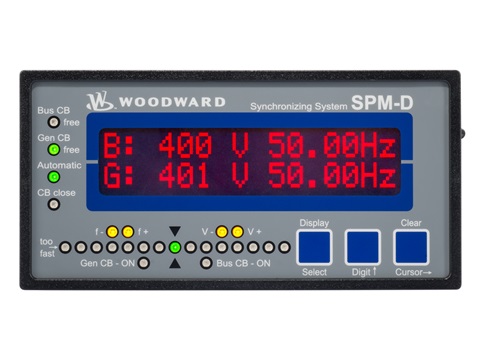

✓Front face synchroscope for easy commissioning
✓HMI programming and USB connectivity to Woodward ToolKit service tool
✓Drop-in replacement for existing SPM-D10 synchronizers

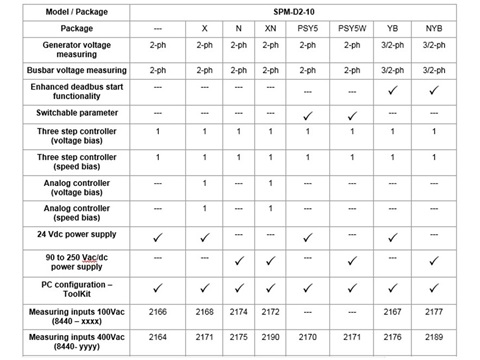

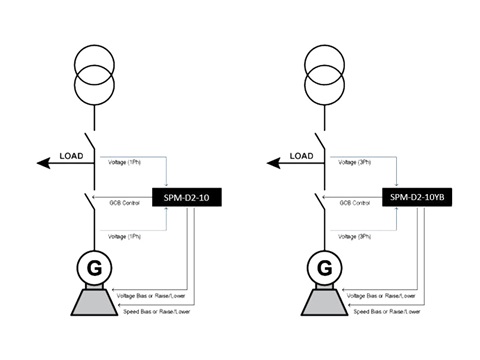

✓SPM-D2-10: provides 1-phase / 2-wire voltage measurement with options for analog or discrete biasing signals and wide range power supply
✓SPM-D2-10/YB: provides 3-phase / 4-wire voltage measurement with discrete biasing signals an option for wide range power supply
✓SPM-D2-10/PSY5: provides 1-phase / 2-wire voltage measurement with discrete biasing signals, option for wide range power supply and 2 sets of switchable parameter set.
✓The SPM-D2-10 series are microprocessor-based synchronizers designed for use on two or three phase AC generators equipped with Woodward or other compatible speed controls and automatic voltage regulators.
✓The SPM-D2-10 synchronizers provide automatic frequency, phase and voltage matching using either analog- or discrete output bias signals.
✓We understand the time-intensive nature of power generation projects and ensuring the longevity of components is a specific way we contribute to our customers’ success.
✓We’ve supplied and supported the well-established SPM-D line of synchronizers for over 20 years.
✓And, now, the new SPM-D2 with its state-of-the-art technology extends the life of your synchronizers as a drop in replacement for your SPM-D units.
✓The SPM-D2-10 series are microprocessor-based synchronizers designed for use on three phase AC generators equipped with Woodward or other compatible speed controls and automatic voltage regulators.
✓The SPM-D2-10 synchronizers provide automatic frequency, phase and voltage matching using either analog or discrete output bias signals.
✓These synchronizers are applied to a wide range of prime movers and generators, as their control signals may be set to fit several types of gensets — from fast-reacting diesel engines to soft-reacting gas turbines.
