LS-6XT

Woodward’s easYgen | LS-6XT control is synchronizer controller with integrated mains decoupling and protection features....

Product Overview

Woodward’s easYgen | LS-6XT control is synchronizer controller with integrated mains decoupling and protection features.

Key Features

✓Works with easYgen-3400/3500XT genset controls and/or easYgen | GC-3000XT group control or as stand-alone synch check cum class I power measurement relay
✓Control up to 64 breakers on up to 128 bus segments in an application
✓Purpose built application schemes for
✓One/two breaker control
✓Gensets/genset groups handling
✓Stand-alone/multiunit operation
✓Forward and reverse synchronization between utility and genset group
✓Built-in redundant communication (CAN-Eth, Eth-Eth)

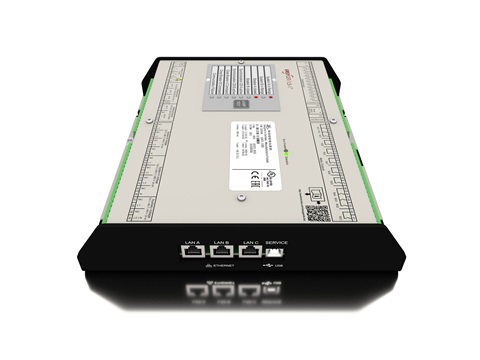

✓Ethernet and RS-485 interfaces for remote control and visualization.
✓Customizable logic, HMI screens (with RP-3000XT) and alarms
✓Adjustable vector groups for synchronization
✓Custom programmable I/Os
✓Power measurement class 1
✓Direct connect up to 690 Vac
✓Peak shaving operation
✓Import/Export operation
✓Islanded & Utility parallel operation
✓Woodward’s easYgen | LS-6XT control is synchronizer controller with integrated mains decoupling and protection features.
✓It enables several redundant communication schemes with peer controls.
✓The applications range from independent synch check relay to complex power management system with multiple utility feeds, bus tie breakers and group breakers in combination with Woodward’s easYgen-3400XT/3500XT equipped genset controllers and/or easYgen | GC-3400XT equipped group controls.
✓Redundant busses running among the peer controls ensure that availability of your power generation asset is not compromised to a single point of failure.
✓The LS-6XT control together with easYgen-3000XT controls are designed to support OEM switchgear builders, generator packagers, and system integrators standardize on a single hardware for a multitude of utility or island parallel operations.
✓Off-the-shelf LS-6XT control is software configurable for one/two breaker control, gensets / genset groups handling, and stand-alone/multiunit application.

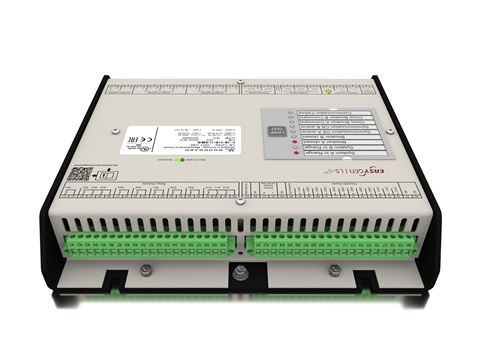

✓The LS-6XT controller is available in a rugged aluminum powder coated housing.

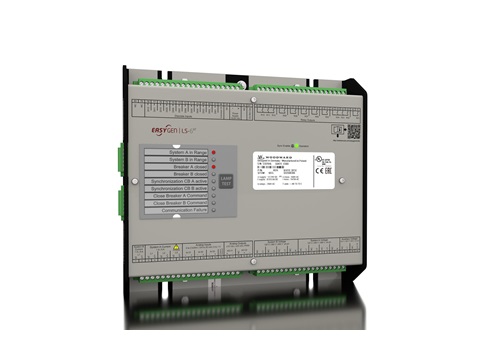

✓An LED Annunciator plate is integrated to the front for local annunciation of alarms that are customizable on-site.
✓Woodward touch screen RP-3000XT is supported over a separate Ethernet network that works as remote operator control panel.
✓premium circuit breaker control for reliability demanding complex power management applications
